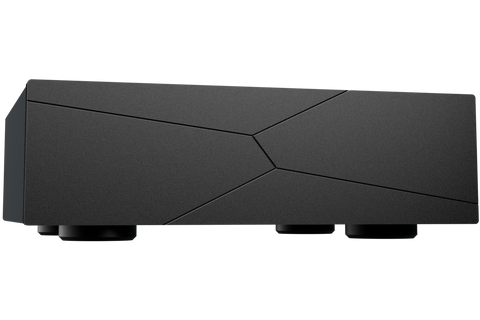

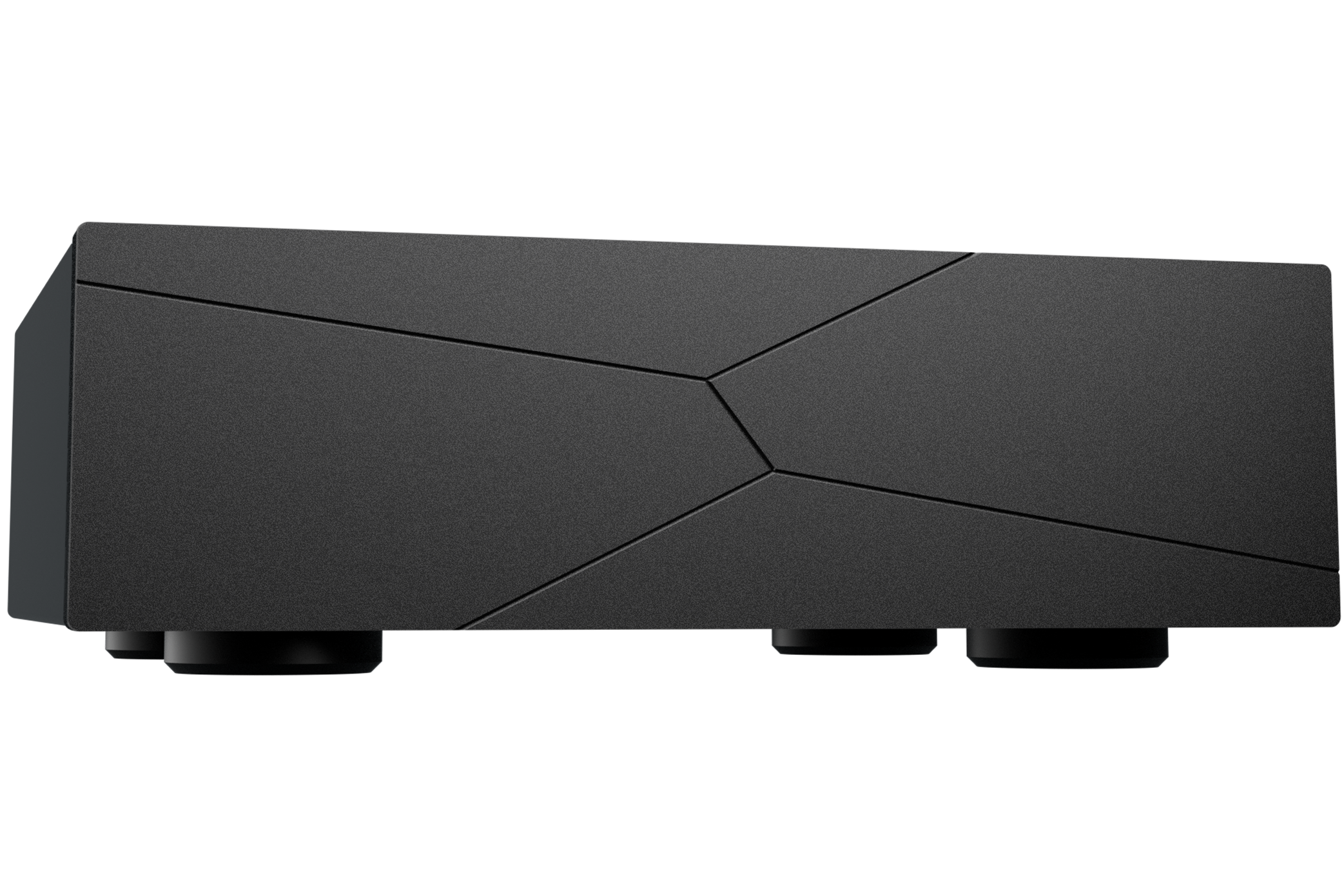

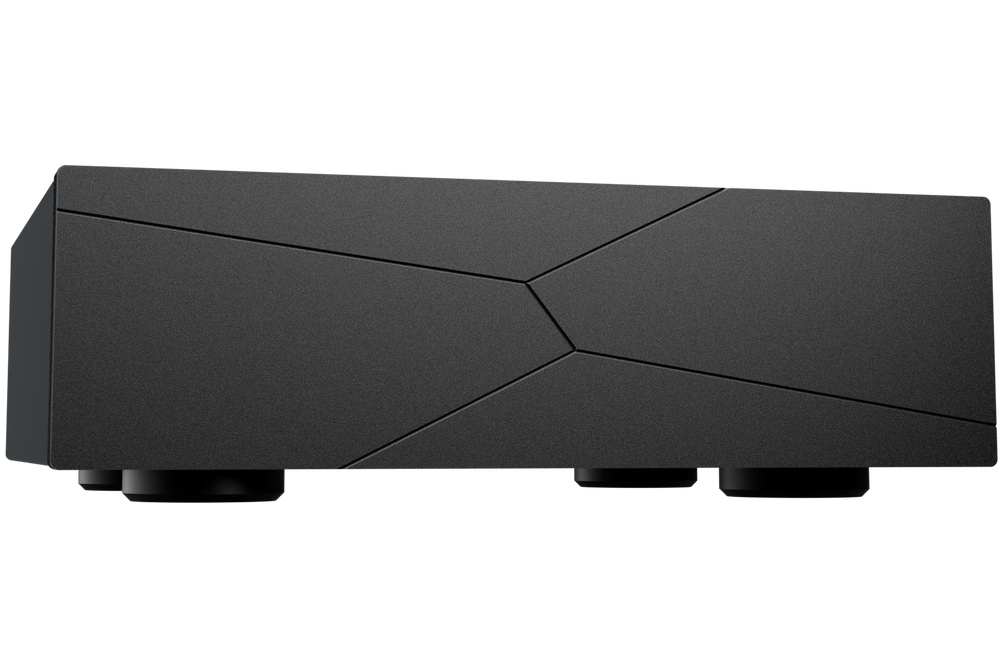

Innuos LPS1 Linear Power Supply

If you own a STREAM1 without the LPS1, this is the conversation you need to have. The STREAM1 ships with a medical-grade filtered switch-mode power supply — it's not a generic wall wart, but it is still a switch-mode design. The LPS1 replaces it entirely with a proper linear supply, and the sonic difference is not subtle.

The Hardware

150VA toroidal transformer. Premium Mundorf and Nichicon capacitors in the filtering stage. Medical-grade AC input filtering before the transformer. A 4mm chassis ground port for connecting to an external ground reference if your system includes one. This is a straightforward, well-executed linear power supply — no exotic materials or esoteric claims, just the right components implemented correctly.

Why It Matters

Switch-mode power supplies operate by rapidly switching a transistor on and off — typically at hundreds of kilohertz — and that switching generates noise that rides back onto the AC line and into the DC rails feeding the host equipment. A linear supply has none of that mechanism. The transformer converts AC to a lower AC voltage, capacitors store charge, and regulation circuits provide stable DC. No switching, no high-frequency noise generation, no contamination of the rails the STREAM1's audio circuitry depends on.

The STREAM1's own careful circuit design — isolated output bay, SLC SSD for the OS, the Innuos real-time Linux kernel — can only deliver its full potential when the power supply feeding it matches the quality of what it's supplying. The LPS1 is that supply.

Press Recognition

The Innuos LPS1 has been discussed in STREAM1 reviews by Hi-Fi+ and Hifi News as an essential companion rather than an optional upgrade. Reviewers consistently noted that the LPS1-equipped STREAM1 performed meaningfully above the standard-supply version in every auditioned parameter.

Specifications

• Transformer: 150VA toroidal
• Capacitors: Mundorf and Nichicon premium
• AC input filter: Medical-grade
• Chassis ground: 4mm port
• Compatible: STREAM1
• Installation: Factory-fitted or aftermarket retrofit

Authorized Innuos dealer. Questions about LPS1 installation on an existing STREAM1, or the difference between a factory-fitted and retrofitted unit? Reach out.
