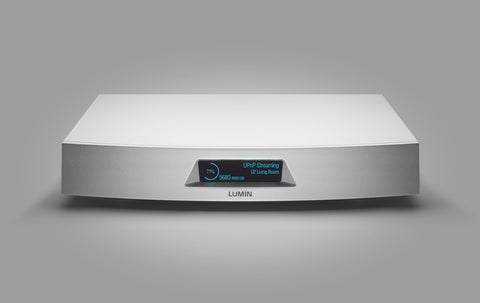

Lumin L2

For Lumin owners who want to store and serve their own music collection, the L2 combines what would otherwise require two separate boxes — a music library server and an audiophile network switch — into a single chassis with one power supply. Both functions benefit from the same linear power supply engineering that Lumin applies across their player lineup.

The Library and Switch Combined

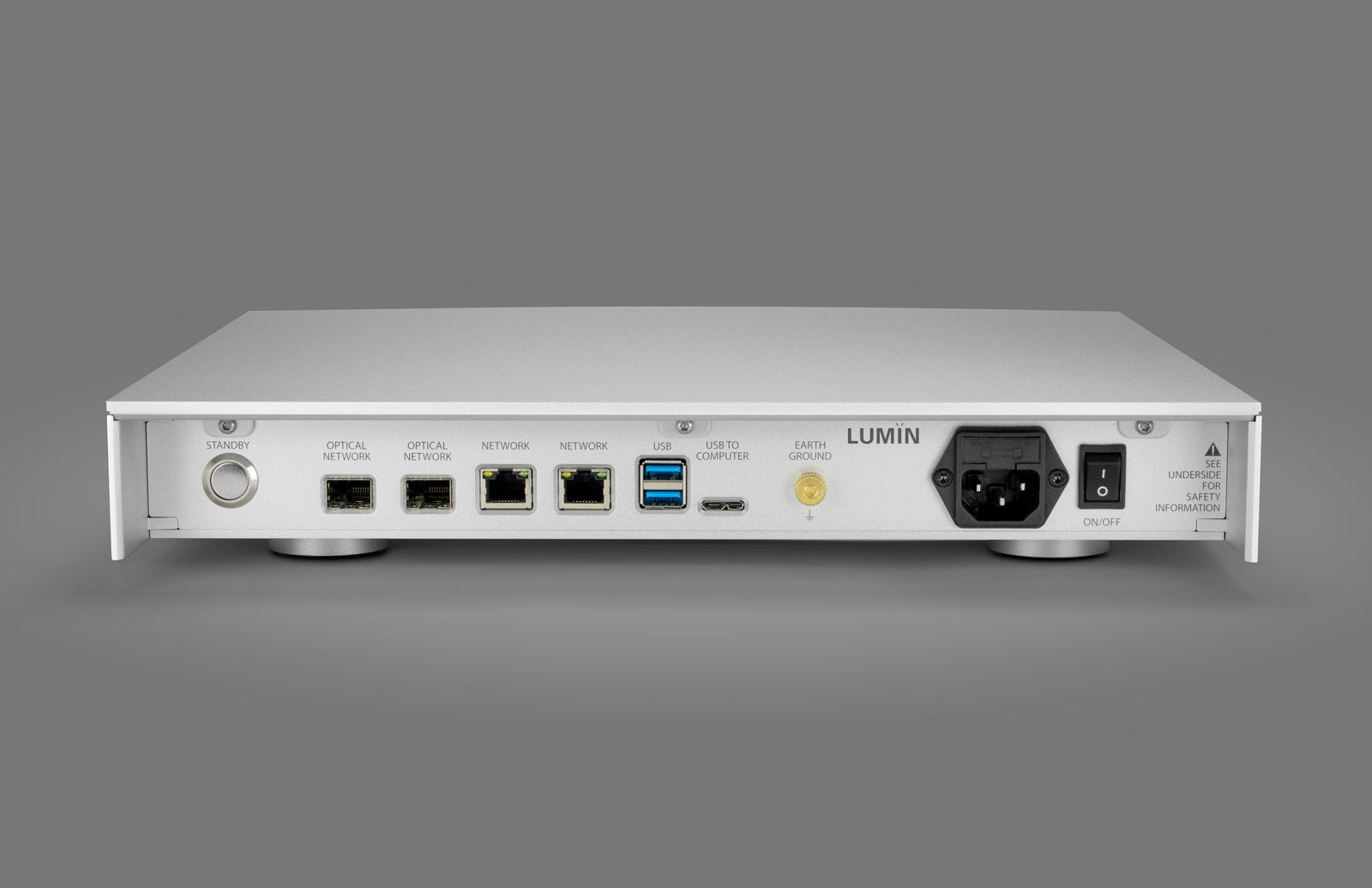

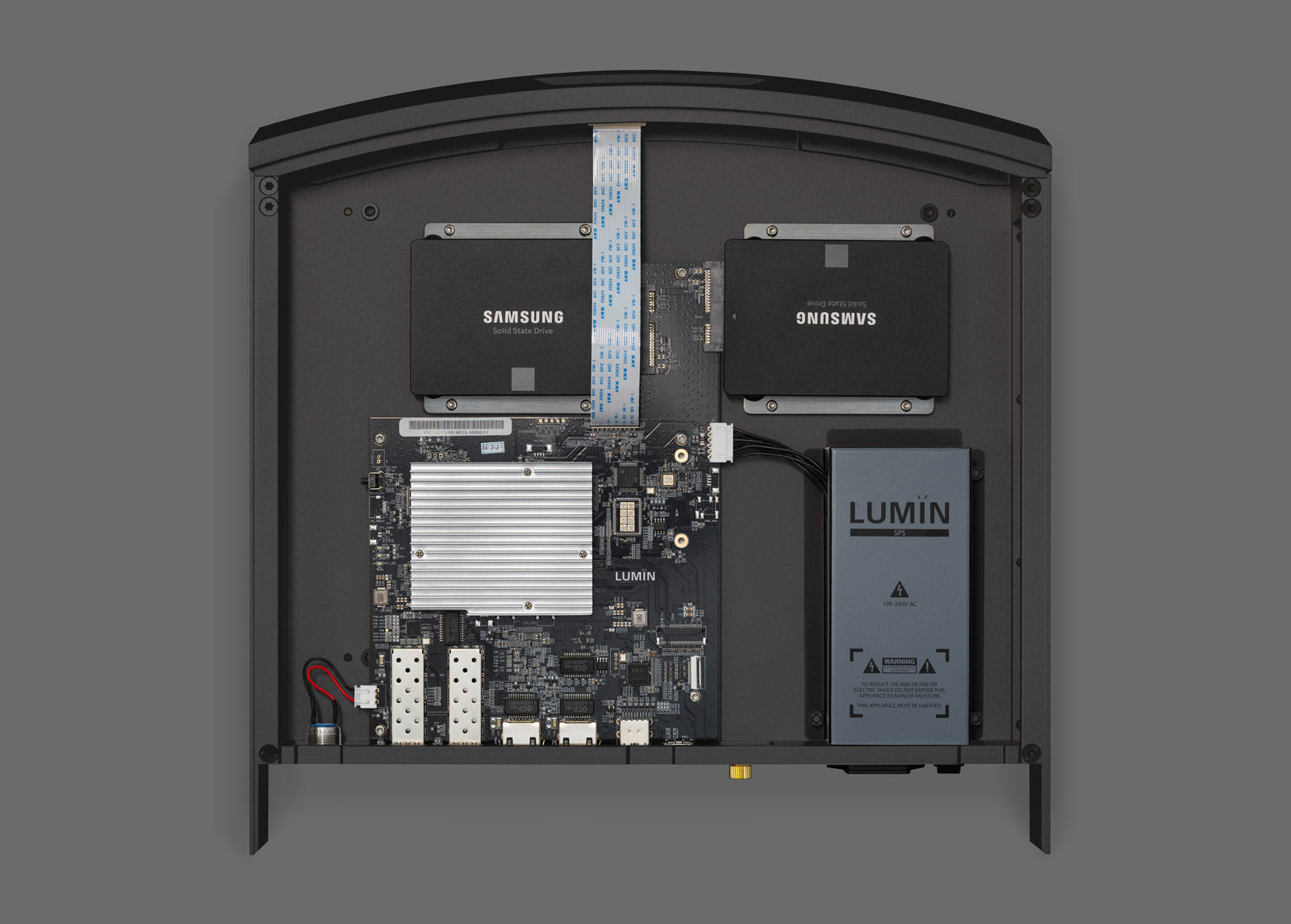

Two internal drive bays accept up to two drives totaling 36TB — enough storage for extensive hi-res music libraries. The drives serve music to any Lumin player or Roon endpoint on the network via the integrated switch. That switch uses an internal toroidal linear power supply rather than a switching supply, addressing the noise source that standard network switches introduce. Ten ports total: four SFP fibre for galvanic isolation of sensitive equipment, six copper RJ45 for everything else.

The Clock Input

10MHz BNC input accepts a master clock reference from the Lumin U2X or any compatible external clock. When clocked, the L2's switch output is synchronized to the same reference as the streaming transport — eliminating the independent timing sources that create subtle but audible asynchrony in multi-component digital systems.

Press Recognition

The Lumin L2 has been reviewed by Hi-Fi+ and discussed on AudiophileStyle as an elegant solution for Lumin system owners who want local music storage and a linear-power-supply switch without two separate products and two separate AC connections.

Specifications

• Storage: 2 internal drive bays, up to 36TB
• Switch: 10 ports — 4x SFP fibre, 6x copper RJ45
• Power supply: Internal toroidal linear
• Clock input: 10MHz BNC
• Configuration: Zero configuration required
• Finishes: Black or silver

Authorized Lumin dealer. Questions about drive selection or how the L2 integrates with an existing Lumin system? Reach out.
